- Number of Channels: 2
- Number of Preamps: 1
- Sample Rate: 192 kHz / 24 bit

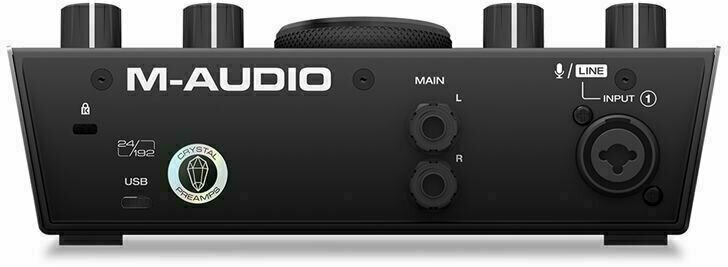

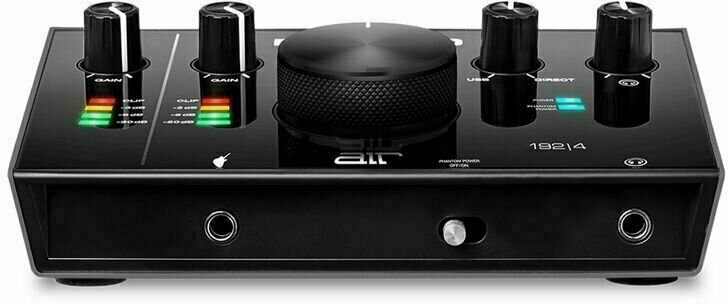

M-Audio AIR 192|4 USB Audio Interface
USB audio interface - 2 In/2 Out - from M-Audio. With the AIR 192/4, you can create flawless 24-bit/192 kHz studio-quality recordings with an intuitive and easy-to-use audio interface. The AIR 192/4 enables you to record up to 2 channels at once with its dedicated XLR + 6,3 mm jack balanced combo input, and an all-new 6,3 mm jack instrument input that has a specially-designed gain and impedance stage to provide the most accurate representation of a guitar or bass plugged directly into the interface.
Our engineers designed the Crystal Preamps to provide you with a transparent, low-noise preamp that guarantees the best sound from your microphones and captures your performance exactly the way you intended. The AIR 192/4 incorporates pristine A/D converters for 24-bit resolution digital audio with explosive dynamic range that captures every nuance and subtlety of the performance.
- Package included: AIR 192/4, USB-C-to-USB-C Cable, USB-C-to-USB-A Cable, Software Download Cards, manual
- Minimum System Requirements: macOS: 10.8 Class Compliant, PC: Windows 7, Windows Driver, Standard USB 2.0 or USB-C Port
Mic Input 1 (balanced XLR)
- Frequency Response: 20 Hz – 20 kHz (+0.1 dB)
- Dynamic Range: 104 dB (A-weighted)
- Signal-to-Noise Ratio: 104 dB (+1.0 dBu, A-weighted)
- THD+N: 0.003%
- Preamp EIN: -128 dBu (max gain, 150 Ohm source, A-weighted)
- Max Input Level: +1.5 dBu
- Gain Range: 55 dB
Line Input 1 (balanced 6,3 mm jack TRS)
- Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
- Signal-to-Noise Ratio: 101 dB (1 kHz, +4 dBu, A-weighted)
- THD+N: 0.003%
- Max Input Level: 16 dBu
- Gain Range: 55 dB
Inst Input 2 (unbalanced 6,3 mm jack TS)
- Frequency Response: 20 Hz – 20 kHz (+0.05 dB)
- Dynamic Range: 100 dB (A-weighted)
- Signal-to-Noise Ratio: 102 dB (+ 4 dBu, A-weighted)
- THD+N: 0.004%
- Max Input Level: 6 dBu
- Input Impedance: 1 MOhm
- Gain Range: 24 dB
Main Outputs, L and R (balanced, differential 6,3 mm jack TRS)
- Frequency Response: 20 Hz – 20 kHz (+0.06 dB)
- Dynamic Range / Signal-to-Noise Ratio: 102 dB (A-weighted)
- THD+N: 0.005%
- Max Output Level: +7 dBu (1 kHz, -1 dBFS)
Headphone Output (impedance-balanced 6,3 mm jack TRS)
- THD+N: 0.005%
- Output Impedance: 10 Ohm
- Power: USB-bus-powered
- Dimensions: 15,2 x 7,1x 19,8 cm
- Weight: 0,9 kg
- Colour: Black
Number of Channels: 2
This product has two channels, giving you the flexibility to connect two audio sources at once. This configuration allows you to combine different instruments and effects, enriching your sonic expression and giving you more variability.
Number of Preamps: 1
Equipped with a high-quality preamplifier that delivers clear, detailed sound from a single input channel. Ideal for smaller recording applications where you need to capture sound with minimal noise and maximum quality.
Phantom Power: Yes
Phantom power provides the necessary voltage for condenser microphones that require an external power source to operate properly. This power supply is built directly into the microphone input, eliminating the need for additional power supplies.
Headphone Output: Yes
The headphone output allows direct connection of headphones for private listening. This output provides a convenient way to enjoy the sound without disturbing others or ambient noise.
Package Contents
- USB-C Cable
- Manual
- Adapter
Number of Channels
Number of Preamps
Phantom Power
Word Clock
ADAT
Interface
MIDI Interface
Software
Ableton Live Lite, Creative FX Collection, Air Mini Grand, Touch Loops, AIR Xpand!2, MPC Beats
Controls
S/PDIF
USB
Yes
Ethernet
Instrument Inputs
Microphone Input
Line Inputs
Line Output
Headphone Output
Offer Configuration
Standard offer
Package Contents
Adapter, Manual, USB-C Cable
UK/EU Power supply included
No
Made in
China
