Yamaha MG12X Mixing Desk

4,9/5

Product code: 1026995 (MG12XCV)

Yamaha MG12X Mixing Desk

4,9/5

Product code: 1026995 (MG12XCV)

This product cannot be delivered to your country at the moment.
Mixing Desk Yamaha MG12X Mixing Desk

Yamaha MG12X Mixing Desk

US$422
Yamaha MG12X 12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX). “D-PRE” mic preamps with an inverted Darlington circuit. 1-Knob compressors. High-grade effects: SPX with 24 programs. PAD switch on mono inputs. +48V phantom power. XLR balanced outputs. Internal universal...
  • Number of Channels: 12
  • Inputs: Jack/MIC Jack 6,3mm TRS, XLR, XLR-Jack
  • Number of Input Ports: 8
  • Number of Outputs: 8
  • Microphone Channel EQ: 3 Bands

Yamaha MG12X Mixing Desk

Yamaha MG12X 12-Channel Mixing Console: Max. 6 Mic / 12 Line Inputs (4 mono + 4 stereo) / 2 GROUP Buses + 1 Stereo Bus / 2 AUX (incl. FX).

  • “D-PRE” mic preamps with an inverted Darlington circuit
  • 1-Knob compressors
  • High-grade effects: SPX with 24 programs
  • PAD switch on mono inputs
  • +48V phantom power
  • XLR balanced outputs
  • Internal universal power supply for world-wide use
  • Optional Rack Mount Kit RK-MG12 Available
  • Metal chassis
  • Dimensions (W×H×D): 308 x 118 x 422 mm
  • Net Weight: 4.2 kg

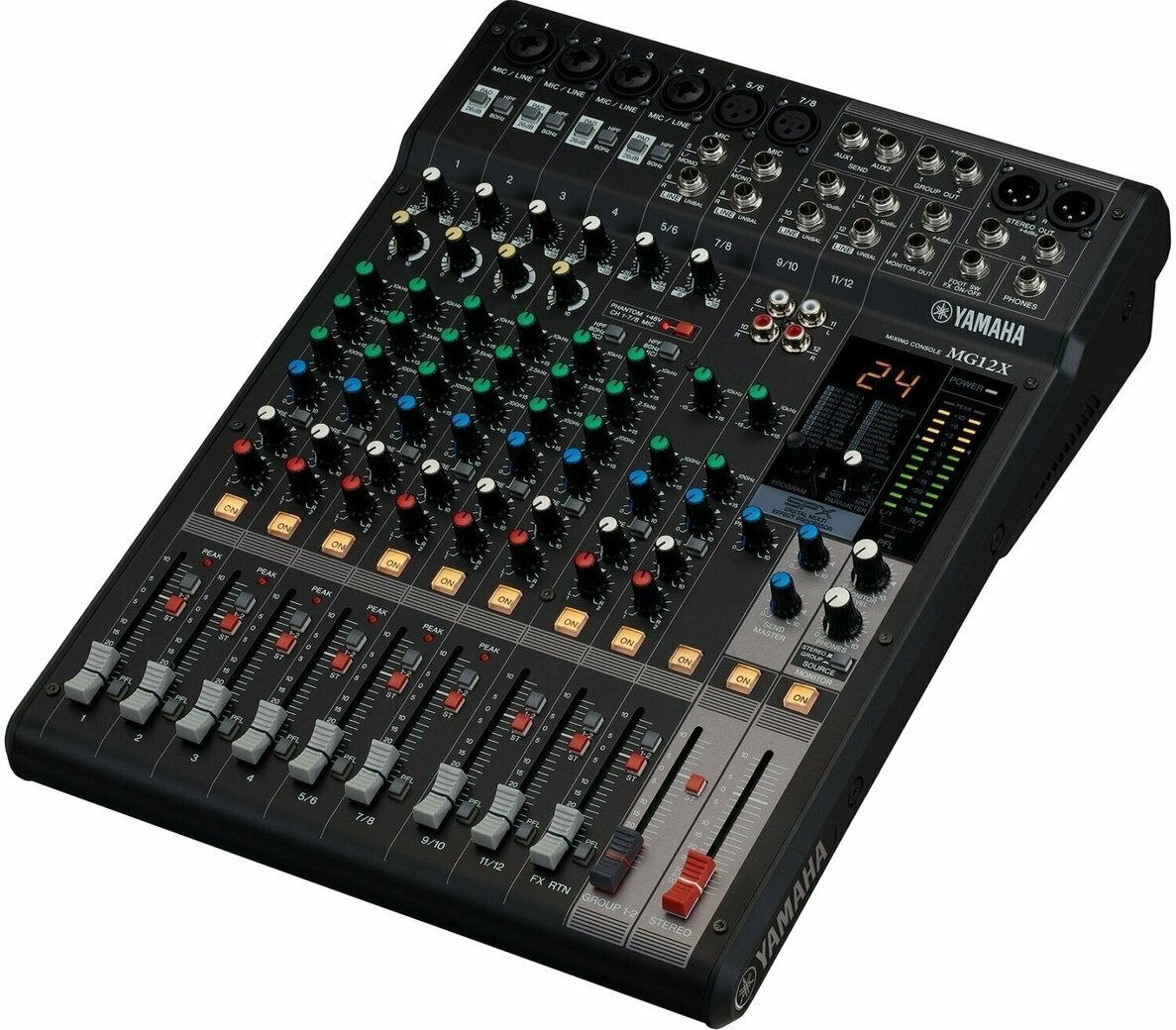

Inputs

Inputs

  • XLR
  • XLR-Jack
  • Jack/MIC Jack 6,3mm TRS

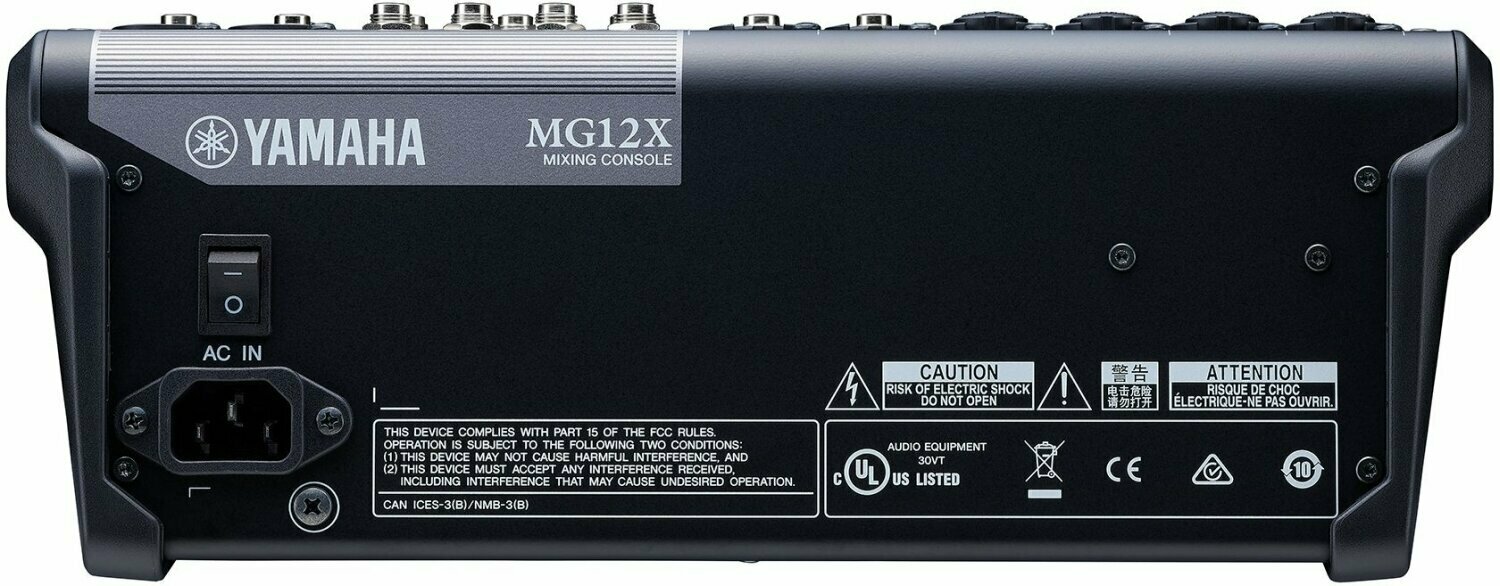

Outputs

Outputs

  • Jack 6,3 mm TRS
  • Jack 6,3 mm TRS Stereo
  • Monitor OUT
  • Headphone Jack 6,3mm TRS
Built-in Effects

Built-in Effects: Yes

The product has built-in effects that allow you to instantly adjust and enhance the sound without the need for external processing.

Microphone Channel EQ: 3 Bands

The 3-band equalizer on the microphone channel gives you detailed control over the bass, mid-range, and treble. This type of equalizer allows you to fine-tune the sound, ensuring optimal tonal adjustment for different sources.

Phantom Power: Yes

Phantom power provides the necessary voltage for condenser microphones that require an external power source to operate properly. This power supply is built directly into the microphone input, eliminating the need for additional power supplies.

Suitability

Тype

Analog, Mixer

Features

Number of Channels

12

Number of Input Ports

8

Number of Outputs

8

Number of Subgroups

2

Phantom Power

Yes

Bluetooth

No

Properties

Frequency Range

20 Hz - 20 kHz

Inputs and Outputs

Analogue Inputs

Yes

MP3 / Line In

Yes

AUX IN

Yes

Microphone Input

8

Outputs

Jack 6,3 mm TRS (4 x), Jack 6,3 mm TRS Stereo (2 x), Monitor OUT, Headphone Jack 6,3mm TRS

Analogue Outputs

Yes

AUX OUT

4

USB

No

Acoustics

Microphone Channel EQ

3 Bands

Effects

Built-in Effects

Yes

Compressor

Yes

Package

Package Contents

Manual

Power supply

Power Supply

Power Cable

Battery Operation

No

Dimensions and Weight

Width (cm)

30.8

Depth (cm)

42.2

Height (cm)

11.8

Net Weight (kg)

4.2

Country

Made in

China
