- Battery Operation: Yes
- USB: Yes
- Built-in Effects: Chorus, Delay, Reverb

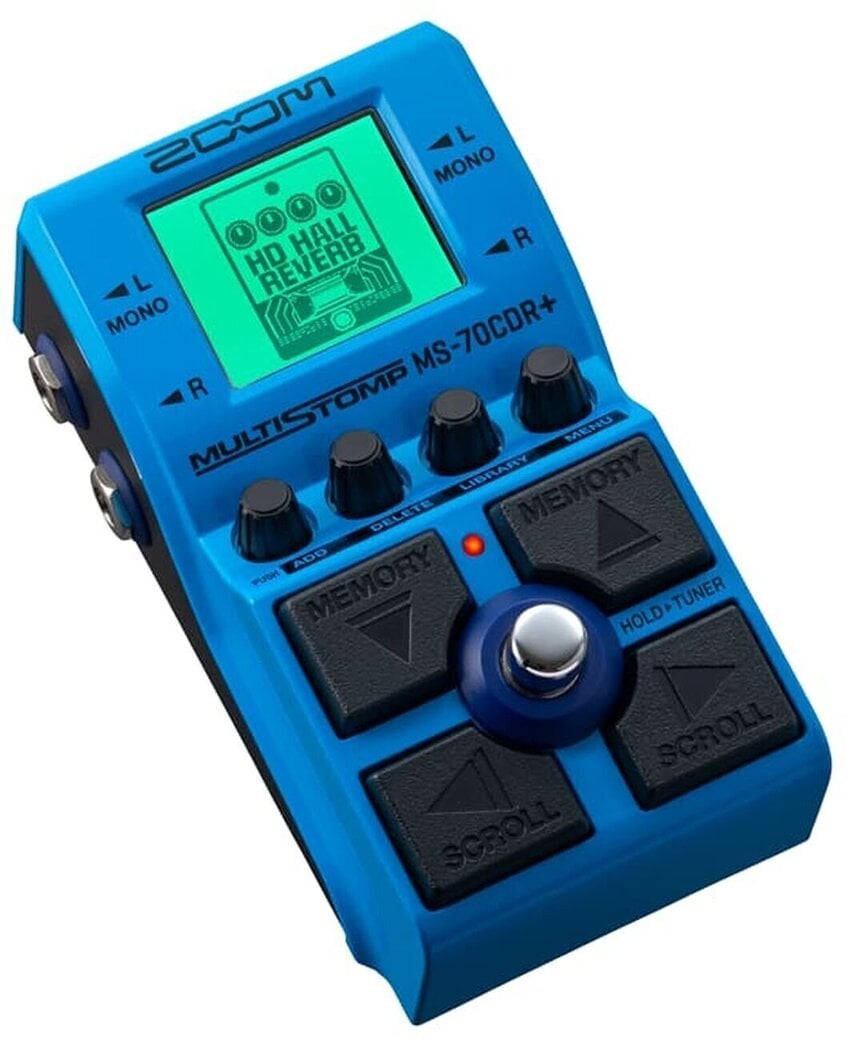

Zoom MS-70CDR+ Guitar Multi-effect
Introducing the Zoom MS-70CDR+, the ultimate modulation station for guitarists seeking to elevate their sound with a vast array of effects. This compact yet powerful stompbox offers an impressive selection of 149 spatial effects, including lush choruses, crystal-clear delays, and atmospheric reverbs, all designed to provide endless depth and texture to your music.
Key Features:
- Diverse Effects: Choose from a wide range of modulation effects, from traditional chorus to innovative pitch shifters, ensuring that every performance is unique.
- MIDI Control: With USB MIDI connectivity, the MS-70CDR+ seamlessly integrates into your existing setup, allowing for remote patch changes and enhanced flexibility.
- Enhanced Navigation: Easily browse through the extensive library of effects with an intuitive interface, making it simple to find the perfect sound.
- Studio-Quality Sound: Equipped with a cutting-edge DSP microchip performing 32-bit floating-point calculations, the MS-70CDR+ delivers sophisticated, high-fidelity audio.
- Built-In Chromatic Tuner: Stay in tune with the convenient onboard tuner, a must-have for live performances and studio sessions.
Technical Specifications
- Maximum number of simultaneous effects: 6 effects
- User patch memories: 100
- Sampling frequency: 44.1 kHz
- A/D conversion: 24-bit 128× oversampling
- D/A conversion: 24-bit 128× oversampling
- Signal processing: 32-bit
- Frequency response: 20 Hz - 20 kHz (+0.5 dB/-0.5 dB) (when 10kΩ load)
- Display: 160×128 dot-matrix LCD

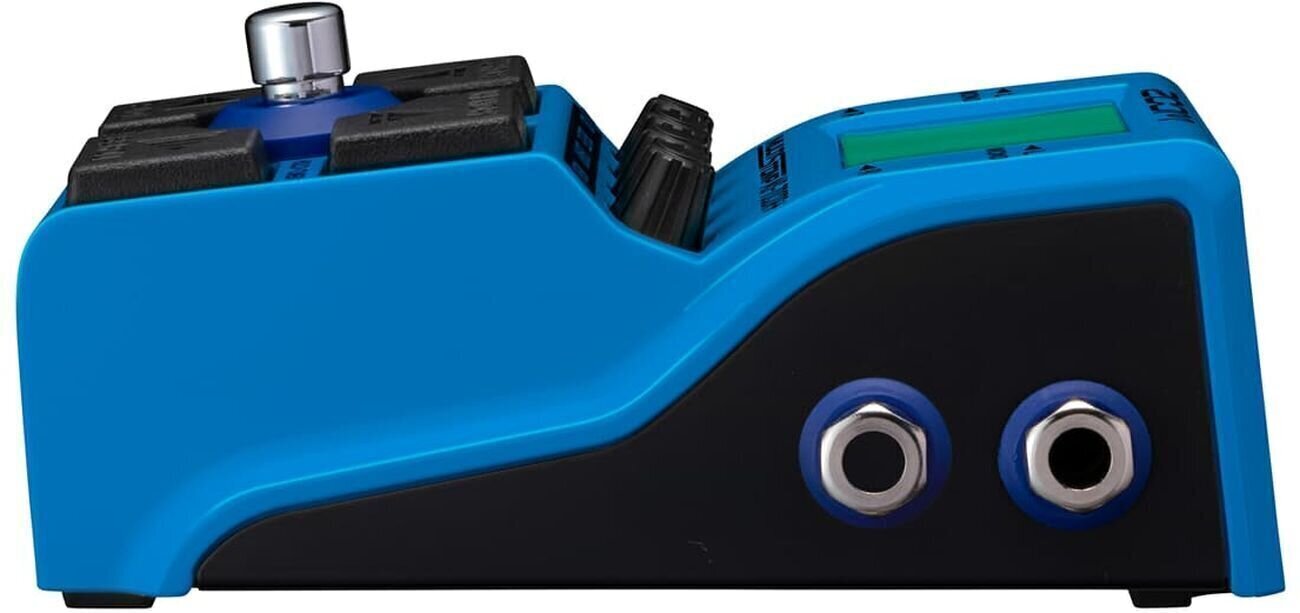

- Inputs L/R
- Standard 6,3 TS jacks
- Rated input level: −20 dBu
- Input impedance (line): 470 kΩ
- Input S/N: 122 dB

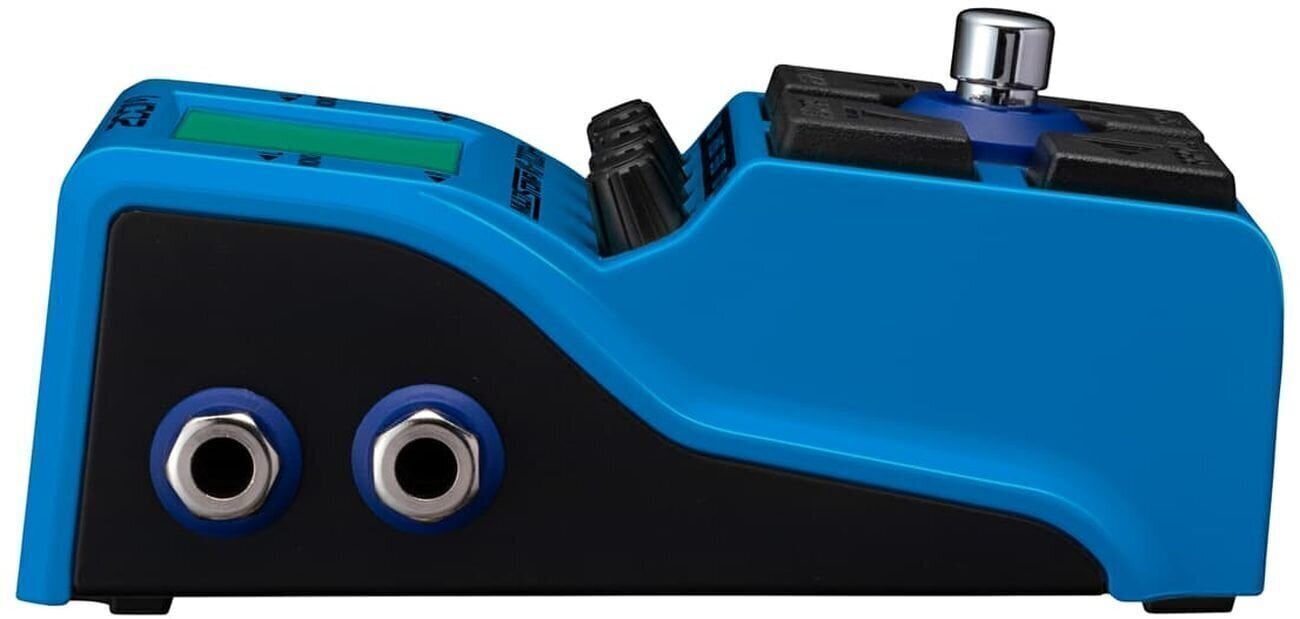

- Outputs L/R
- Standard 6,3 TS jacks
- Maximum output level: +7.2 dBu (when output impedance 10 kΩ or higher)
- Noise floor (residual noise) L/R: –100 dBu

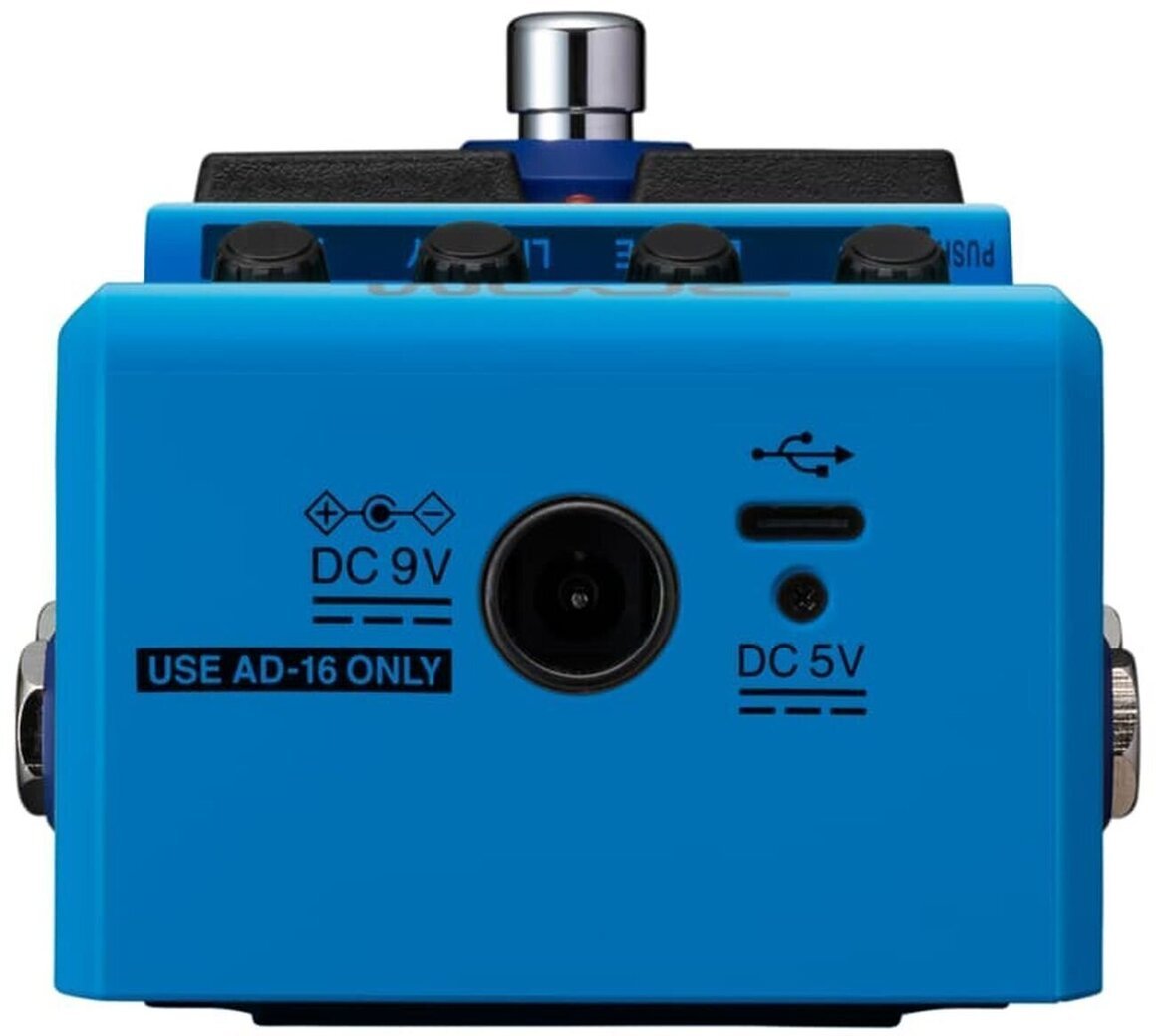

- Power
- AC adapter: 9V DC 500mA center negative
- 2 AA batteries (alkaline, lithium or rechargeable NiMH batteries)
- Estimated operation time using batteries
- Alkaline batteries: about 7 hours (about 5 hours using stereo input)
- NiMH batteries (1900 mAh): about 6.5 hours (about 5 hours using stereo input)
- Lithium batteries: about 14 hours (about 10 hours using stereo input)
- USB Port:
- USB 2.0 Type-C
- Handy Guitar Lab: USB 1.1 Full Speed
- Use a USB cable that supports data transfer. USB bus power is supported.
- Dimensions: 133 mm (D) × 79 mm (W) × 61 mm (H)
- Weight: 368 g (excluding batteries) / 415 g (including batteries)
- Note: 0 dBu = 0.775 V
Тype: Multieffect
Multieffect is a device that combines multiple effects into a single unit. It allows players to switch between various sound effects - such as distortion, delay, reverb, modulation, or dynamics - and often includes the ability to create and save custom presets. Multieffects are popular for their versatility, compact design, and convenience in both live performance and studio use.
Tuner: Yes
The built-in tuner allows you to quickly and accurately tune instruments directly from the unit. This feature eliminates the need for additional tuning devices, increasing convenience and efficiency on stage or in the studio.
Inputs
- USB-C
- Jack 6,3mm TS
Outputs: Jack 6,3 mm TS
A universal connector used to connect various audio devices.
Battery Operation: Yes
Battery power provides flexibility and mobility. This feature allows you to use the device anywhere, even in places where an electrical outlet is not available. Battery power is ideal for situations that require portability and independence from the grid, whether you're outdoors, on the road, or in a location with limited access to electricity.
Тype
Number of Effects
True Bypass
Tuner
Number of Presets
Number of Buttons
Number of Input Ports
Number of Outputs
2
Inputs
Outputs
USB
SD Slot
Instrument Inputs
2
USB MIDI
Yes
UK/EU Power supply included
Height (cm)
6.1
Width (cm)
7.9
Depth (cm)
13.3
Made in
China
