DNA PSV 2 BK Wireless set

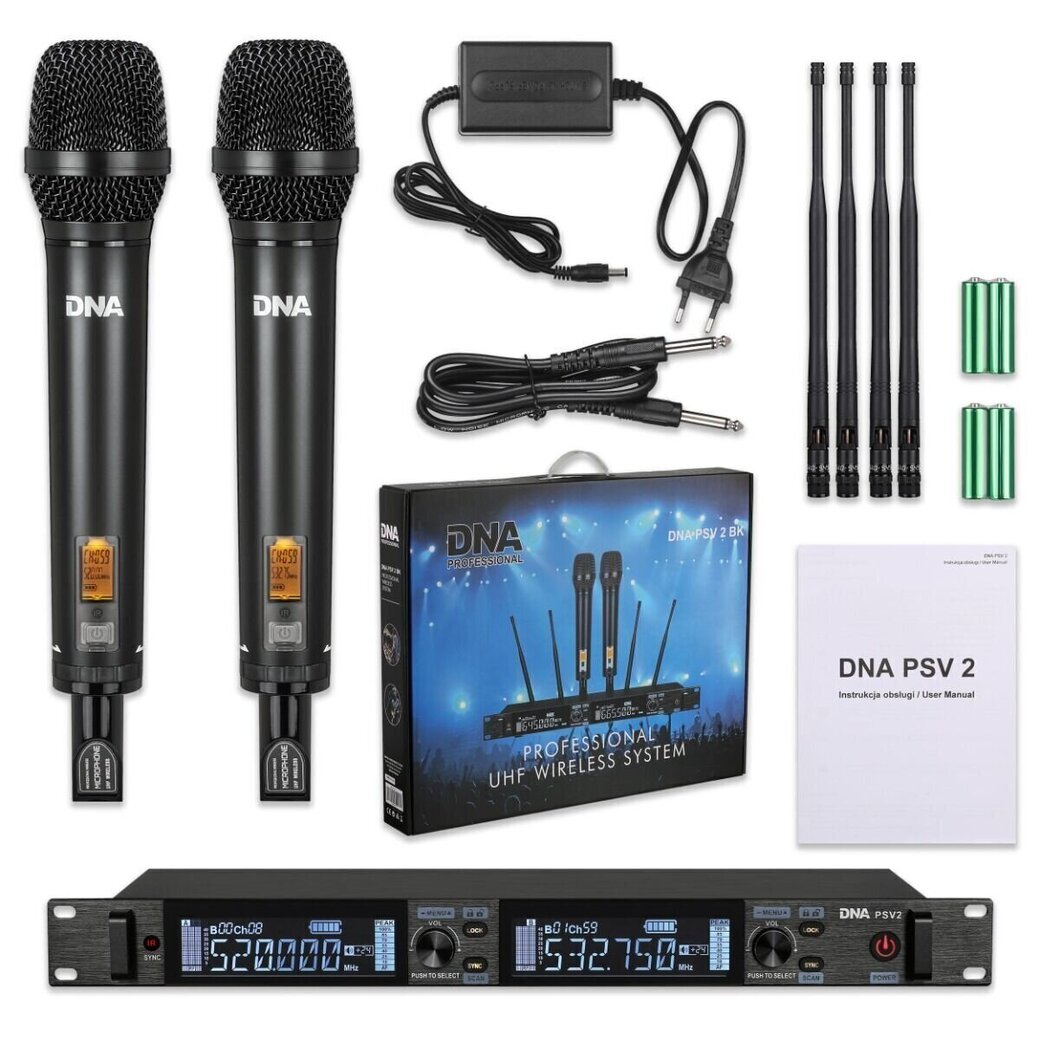

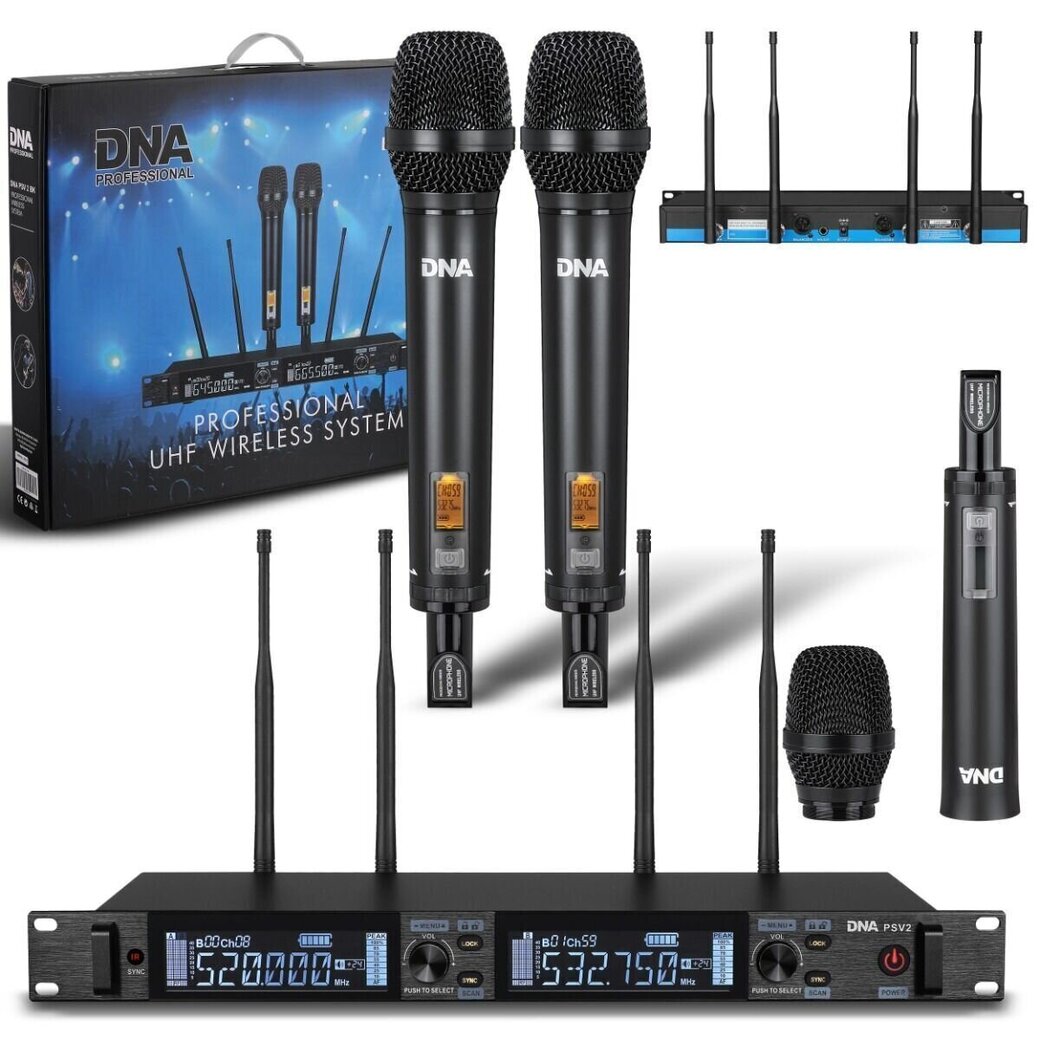

DNA PSV 2 BK is a high-quality wireless microphone system based on the latest digital technology. Measured range is approx. 100 m without interference. The set consists of two wireless microphones and a compact UHF receiver that can be easily connected with an amplifier or audio mixer socket. The set is ideal as a sound system for wedding bands, event companies, game entertainers, karaoke microphone set as well as various types of cultural and educational institutions, providing excellent sound quality in any application.

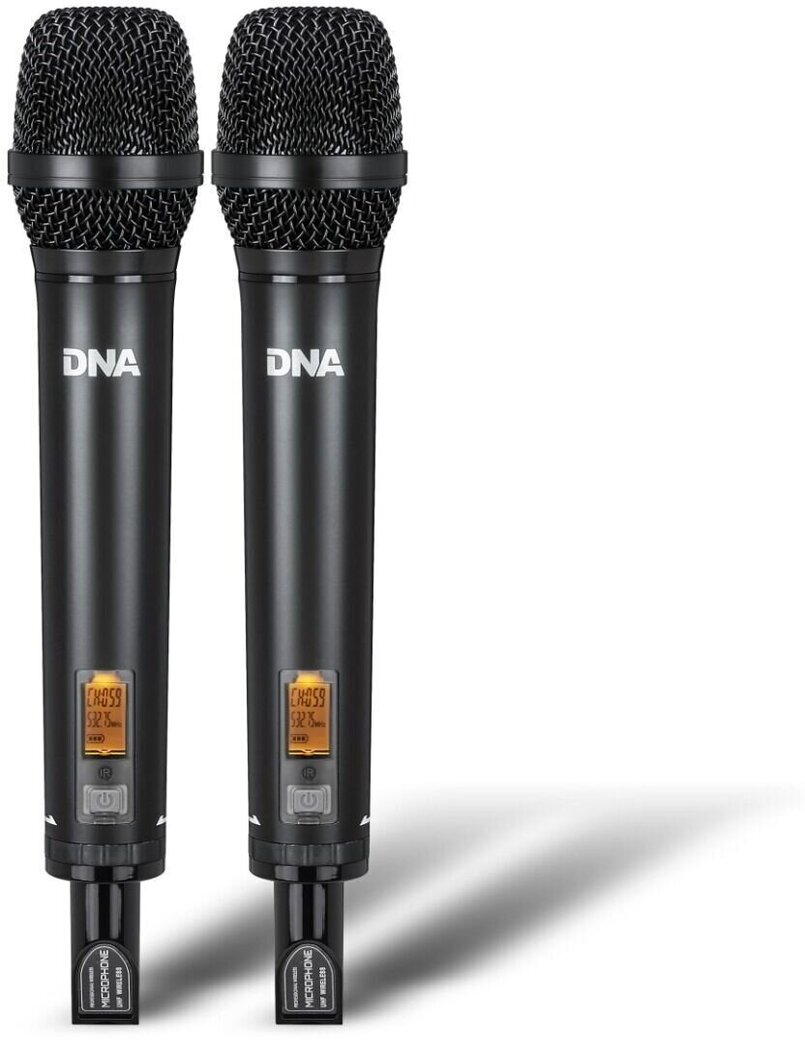

Wireless microphones with precise audio parameters
Each microphone in the DNA PSV 2 BK set is powered by two AA batteries for up to 6 hours of continuous operation. The transmitters feature a convenient power button, an infrared receiver (IR port) to synchronize the output signal with the receiver, and an easy-to-read LCD display showing operation frequency and battery level. With perfectly matched frequency response, fast transmission speed, high dynamic range, low distortion, low latency and high signal-to-noise ratio, the microphones offer great sound quality.

UHF wave receiver with automatic scanning

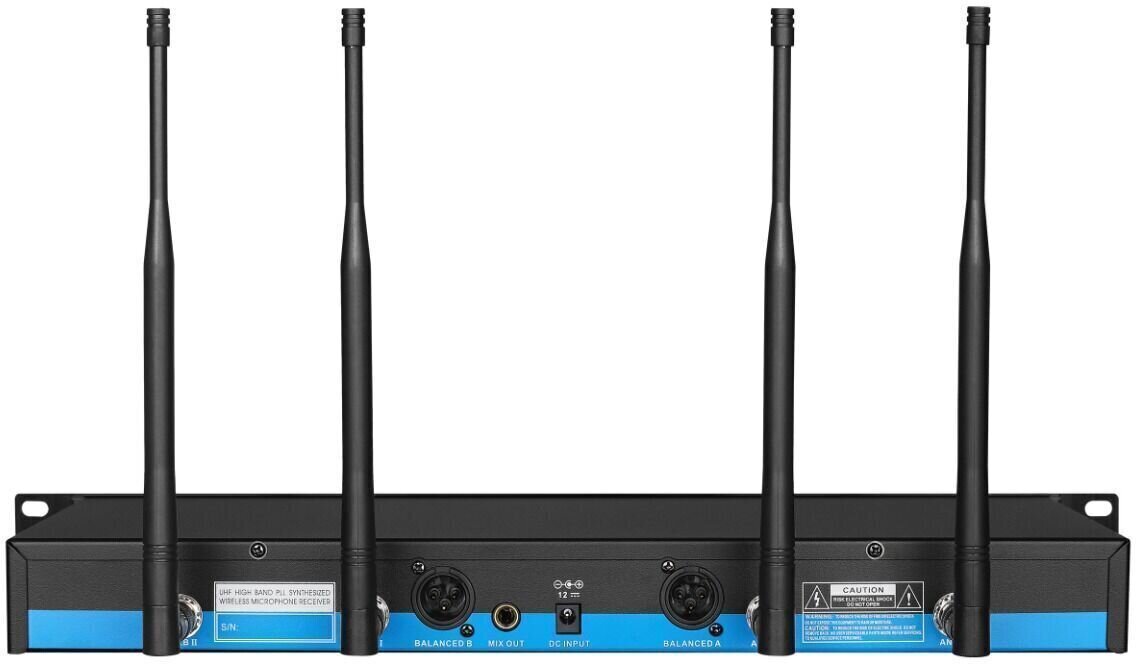

The second part of DNA PSV 2 BK system is an RF (UHF) receiver with a frequency range of 518 to 542 MHz. The back of its housing features XLR outputs for channels A and B, a jack (6.35 mm) output, a power socket and four BNC antenna connectors. The front section houses the power switch, two volume potentiometers, an infrared receiver and a dual control panel with LCD display. It shows current system parameters, such as RF/AF signal level, receiver frequency setting, selected operation channel and whether the microphones are currently on or off. Using the SYNC button, we can perform an automatic scan, during which an undistorted frequency is assigned to the system devices. This provides convenience and reliability in the area of professional applications.

Microphones for vocals, speech or karaoke
DNA PSV 2 BK is a professional microphone system for bands, singers performing solo or in duets as well as individuals and companies organizing panel discussions, training sessions and various thematic meetings. They are also great wireless microphones for karaoke. If you are wondering what kind of sound system to choose, you should definitely pay attention to DNA PSV 2 BK. These are professional, very solid, yet competitively priced microphones that will work perfectly in any conditions.

Technical specifications:

Transmitters:

• Radio frequency range: 518 - 542 MHz
• Oscillation mode: phase-locked frequency PLL synthesizer
• Output power: 10 mW
• Frequency response: 50 - 18,000 Hz
• Sound pressure level (SPL): 130 dB
• Measured signal power: 100 mb
• Transducer: dynamic
• Battery: 2 x AA
• Battery life: approx. 6 hours
• Current consumption: < 100 mA
• Output impedance: 600Ω
• Dynamic range: >90 dB
• Operation range: approx. 100 m
• Transmitter dimensions (length x diameter): 28 x 5 cm

Receiver:

• Channels: 2
• Radio frequency range: 518 - 542 MHz
• Modulation method: FM
• Oscillation mode: phase-locked frequency PLL synthesizer
• Sensitivity: S/N > 60 dB for offset = 25 kHz and input = 6 dBµV
• Offset: +/- 45 kHz
• Bandwidth: 50 MHz
• Signal-to-noise ratio: > 100 dB
• THD: < 0.5% @ 1 kHz
• Output voltage: balanced: -20 dBV / 100 Ω
• Output jack: unbalanced: -4 dBV / 5 KΩ; sockets: XLR balanced and 6.3 mm unbalanced
• Operation temperature: -10 ºC to 55 ºC
• Power supply: DC 12-15 V, 0.5-1 A
• Receiver dimensions (L x W x H): 48 x 22 x 5 cm
