Yamaha MG16X Mixing Desk

Yamaha MG16X — 16-Channel Analog Console with D-PRE Preamps

The Yamaha MG16X is a third-generation analog mixing console built for live sound, houses of worship, and project studios needing high channel count in one rack-mountable unit. This model is the right choice for working engineers who need studio-grade preamps, onboard effects, and road-ready construction in a single chassis, with 10 microphone inputs and 16 line sources across 8 mono and 4 stereo channels.

D-PRE Preamps, SPX Effects, and Custom MG01 Op-Amps

Yamaha's discrete Class-A D-PRE microphone preamps use an inverted Darlington circuit with two cascading transistors for low-impedance, high-headroom signal capture. A custom MG01 op-amp handles the head-amp stage for improved resolution. The onboard SPX engine supplies 24 editable digital effects including reverb, delay, chorus, and pitch programs.

Channel Count, Routing, and Phantom Power

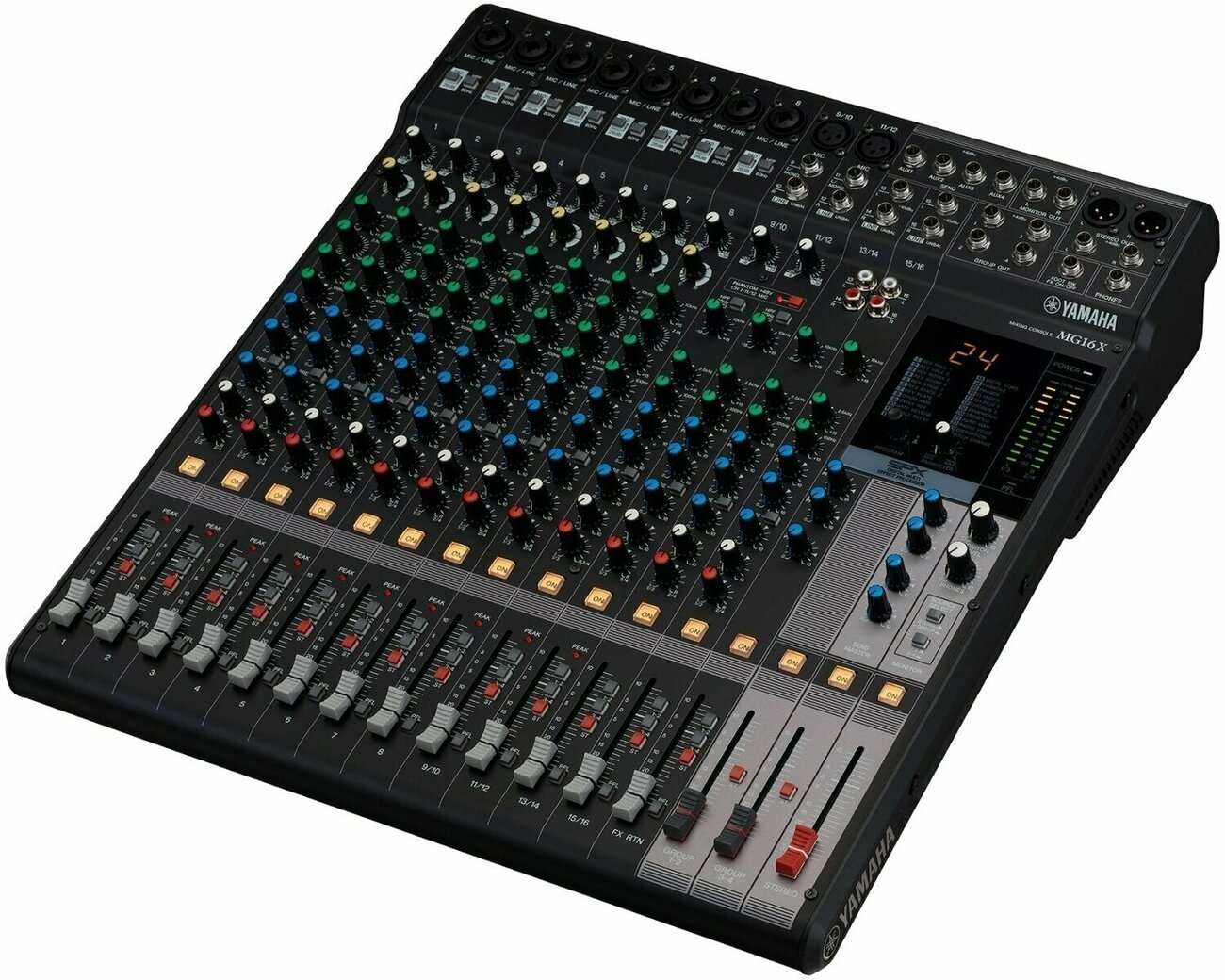

Routing capacity is the headline number for any mid-format console, and MG16X delivers 10 microphone preamps and 16 line inputs across 8 mono and 4 stereo channels. Mono channels accept MIC and LINE signals via combo jacks with PAD attenuation.

• To handle a full band from a single desk, the unit provides 10 microphone inputs (8 mono + 2 stereo).
• Line Inputs: 16 (8 mono + 4 stereo) — accommodates keyboards, playback, and stereo sources.
• Phantom Power: +48V switchable — powers condenser microphones.
• AUX Sends: 4 (incl. FX) — two pre-fader for monitors, two post-fader for FX.

4-Band EQ, 1-Knob Compressors, and Highpass Filter

Tonal shaping on each mono channel runs through a 4-band equalizer with sweepable mid frequencies, paired with an 80 Hz switchable highpass filter. 1-knob compressors sit on the mono channels for fast dynamics control during live events.

• Microphone Channel EQ: 4-band (High, Mid x2 with frequency select, Low) — precise tonal sculpting.
• Highpass Filter: 80 Hz switchable — removes stage rumble.
• 1-Knob Compressors: on mono channels — optimized compression via single rotary control.

Chassis, Outputs, and Onboard Effects

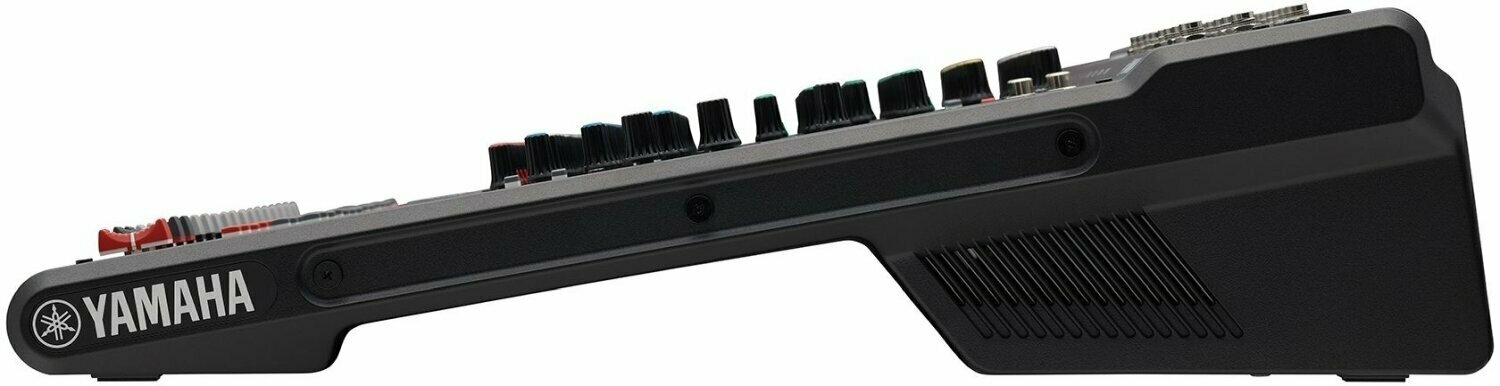

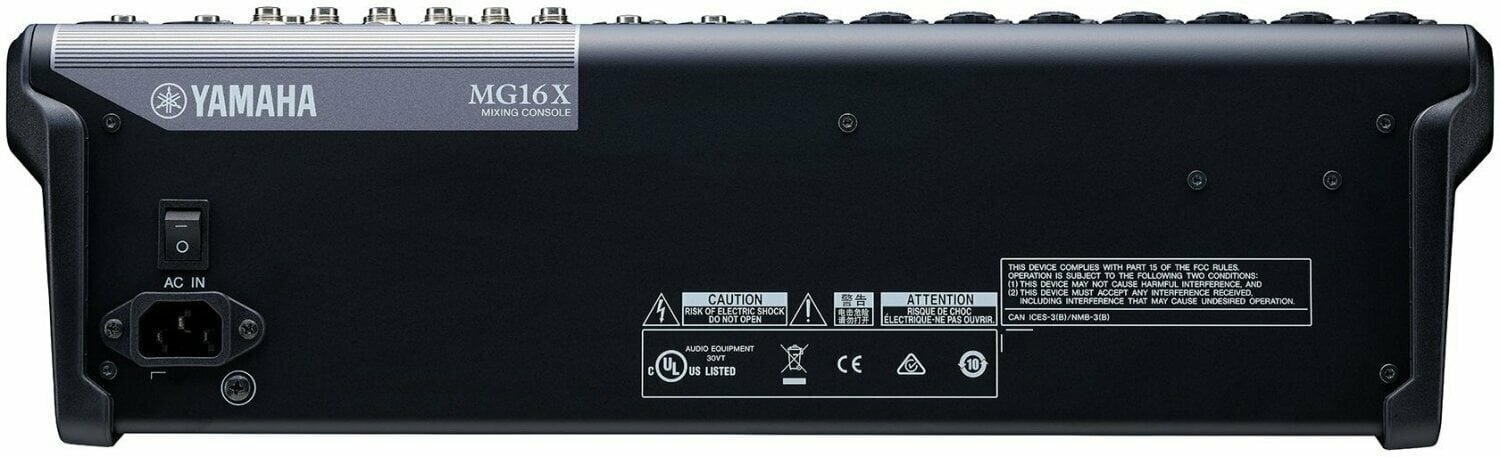

The unit ships in a powder-coated metal chassis with knob controls mounted above the surface so impact transfers to the chassis rather than the circuit board. An internal universal power supply accepts mains voltage worldwide, and rack ears are included. The package ships with a manual and power cable for immediate setup.

• Dimensions (W × H × D): 444 mm × 130 mm × 500 mm — fits standard 19-inch rack.
• Net Weight: 6.8 kg — light enough for one-person transport.
• Main Outputs: XLR balanced L/R + Jack 6.3 mm TRS L/R — feeds front-of-house or recording interface.
• Monitor & Headphone Outputs: Monitor OUT + Headphone Jack 6.3 mm TRS — dedicated cue mix.
• Internal Effects: SPX with 24 editable programs — adds reverb, delay, modulation, pitch.

Live Engineers, Small Venues, and Project Studios

Solo sound engineers running small-to-mid live events will find this model covers the channel count, AUX sends, and onboard effects needed without carrying a rack of outboard. Houses of worship benefit from the rack-mount kit, internal universal power supply, and +48V phantom power for condenser pulpit mics. Project-studio owners get D-PRE preamps and 1-knob compressors for vocal tracking, while the 4-band EQ with sweepable mids handles detailed mix decisions.

MG Series — Third-Generation Analog Consoles

Yamaha introduced the MG Series as a compact analog console line built on the company's century-long heritage in musical instruments and professional audio. Now in its third incarnation, the range incorporates technologies developed for Yamaha's high-end touring consoles, including the D-PRE preamp topology and the SPX digital effects platform. The MG16X, MG12X, and MG10X launched in March 2022 as the X-model refresh, distinguished from the XU line by the absence of a USB audio interface and a grey master block finish.
