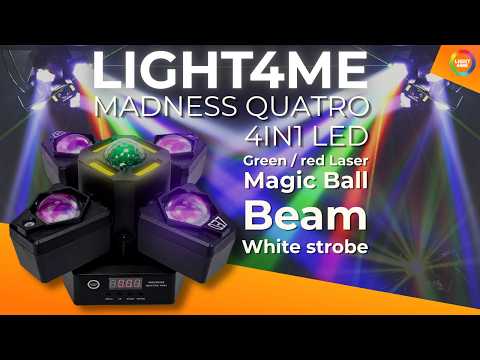

Light4Me MADNESS QUATRO 4IN1 Lighting Effect

MADNESS QUATRO 4IN1 is a moving LED DMX multi-effect lighting fixture for DJs, bands and event organizers who want to quickly create dynamic lighting for a dance floor, stage or event. It is ideal for weddings, clubs, dance halls, house parties and small concerts because it combines Beam, Magic Ball, laser and white strobe effects in one compact housing. For example, during a first dance you can run gentle moving beams and the Magic Ball effect, then switch to lasers and a music-synced strobe later in the party. Choose this model when quick setup, multiple lighting effects and control directly from the remote, DMX or LED panel matter most.

4-in-1 multi-effect fixture for clubs, weddings and stages - more light without a large setup
The biggest advantage of this model is the combination of four different lighting effects in one fixture. Beam uses 16 3W R/G/B/W LEDs, Magic Ball uses a 10W RGBW LED, the laser operates in red 50 mW and green 100 mW, while White Strobe uses 4 5W CW LEDs. This allows you to create both colorful dance floor ambience and sharper lighting accents during more intense parts of the music.

0-540° Pan movement and four Tilt sections for the Beam source in a 0-180° range help direct the light toward the dance floor, walls, ceiling or stage. Adjustable movement speed lets you match the fixture's behavior to the atmosphere of the event - slower during dinner, faster during a DJ set. Explore this model when you need a lighting effect for mobile work and fast venue setup.

Easy operation of LIGHT4ME MADNESS QUATRO 4IN1 - start without complicated setup
The fixture can run in auto, sound, master/slave or DMX mode, so it suits both beginners and more advanced lighting operators. Sound mode reacts to music with adjustable microphone sensitivity, while auto mode uses two programs with adjustable speed. There are also 6 built-in shows that make it easier to prepare lighting quickly for a party.
Control is available via the wireless remote control, 4-button LED panel for manual operation or DMX. 20 DMX channels allow precise control in a larger stage setup, while 3-pin XLR input/output connectors make it possible to link fixtures in a line. Up to 25 fixtures can be used in one DMX line, making it easier to build a repeatable lighting system for a stage or club.

One fixture - multiple functions and savings in time and space
This multi-effect fixture helps reduce the number of separate lights, remotes and settings needed when preparing an event, Instead of combining a beam effect, ball effect, laser and strobe separately, you get one integrated lighting system with a 0-100% linear dimmer and adjustable 0-20 Hz strobe. It is a practical solution when the stage is small, setup time is limited and the lighting design needs to look attractive from the first song.
The passive cooling system works through the housing, so the fixture operates quietly without disturbing the ambience of the event. The IP20 protection rating means indoor use, for example in a club, wedding venue, rehearsal studio or indoor event stage.

Technical specifications:

• Device type: moving LED DMX multi-effect lighting fixture with wireless remote control and mounting bracket
• Light sources:
  • Beam: 16x3W R/G/B/W LED (R4/G4/B4/W4)
  • Magic Ball: 10W RGBW 4-in-1 LED
  • Laser: red 50 mW, green 100 mW
  • White Strobe: 4x5W CW LED
• Pan movement: 0-540°, adjustable speed
• Beam light source - Tilt movement: 4 sections, 0-180° range
• Beam/Magic Ball light source color palette: RGBW (red, green, blue, white)
• White Strobe light source color: CW (cool white)
• Smooth color mixing: RGBW (Magic Ball)
• Dimmer: linear, full-range (0-100%)
• Strobe effect: 0-20 Hz, adjustable operating frequency
• Built-in shows: 6 shows
• Auto mode programs: 2 programs, adjustable program speed
• Sound mode programs: 2 programs, adjustable microphone sensitivity
• Control: automatic, DMX, infrared wireless remote control and manual
• Remote control battery: CR2025
• Control panel: LED display (7-segment, 4-digit) + 4 buttons
• Operating modes: auto, DMX, master/slave and sound
• DMX channels: 20
• DMX data connectors: 3-pin male XLR (input) / female XLR (output)
• Power connector: IEC C8 male (input)
• Multiple fixture linking capability (DMX signal daisy-chain): yes
• Maximum number of fixtures in one DMX line: 25
• Power cord length: 1 m
• Power supply voltage: AC 100-240V, 50/60 Hz
• Power consumption: 60W
• IP protection rating: IP20
• Cooling system: passive (through the housing)
• Display backlight control: yes
• Display orientation inversion: yes
• Device reset: yes
• Floor operation capability: yes
• Ceiling mounting: yes
• Mounting holes in the bracket: M4
• Housing material: ABS plastic
• Mounting bracket material: powder-coated iron
• Device color: black
• Device dimensions: 20.2 x 20.2 x 15.5 cm
• Net weight: 1 kg
